JILIN SENFENG PIPE CO., LTD.
● Materials: Ductile iron
● Nominal sizes: DN80—2600mm
● Pressure: PN10/16/25/40
● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.
● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.

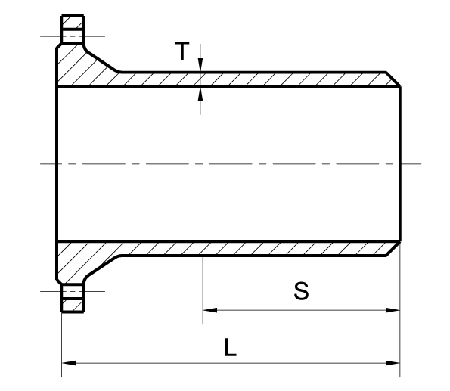

Dimensions:
DN | L | S |
|
|
|
100 | 360 | 215 |
150 | 380 | 225 |
200 | 400 | 230 |
250 | 420 | 240 |
300 | 440 | 250 |
350 | 460 | 260 |
400 | 480 | 270 |
450 | 500 | 280 |
500 | 520 | 290 |
600 | 560 | 310 |
700 | 600 | 330 |
800 | 600 | 330 |
900 | 600 | 330 |
1000 | 600 | 330 |
1200 | 600 | 330 |
1400 | 710 | 390 |
1600 | 780 | 430 |
1800 | 850 | 470 |
2000 | 920 | 500 |
2200 | 990 | 540 |
2400 | 1060 | 570 |
2600 | 1130 | 610 |
