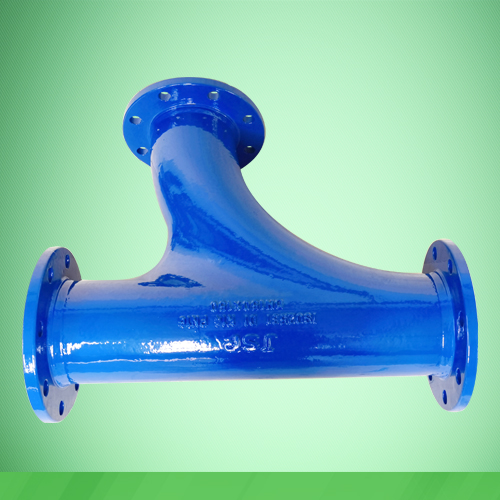

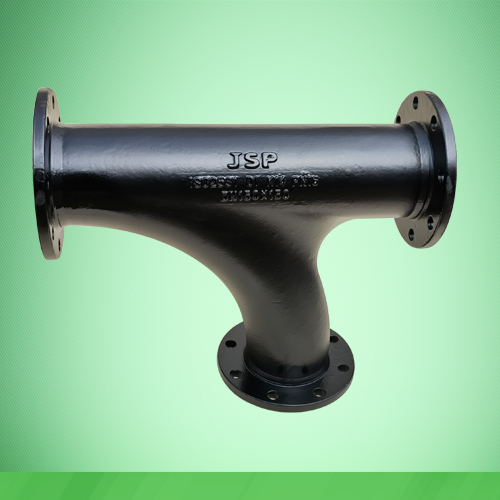

All flanged radial tee

All flanged radial tee

0.00
0.00


● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.



Dimensions:

DN × dn

T

L

A

B

r

80× 80

8.1

545

165

380

330

100×100

8.4

580

180

400

340

150×150

9.1

670

220

450

385

200×200

9.8

760

250

500

430

250×250

10.5

900

350

550

475

300×300

11.2

1000

400

600

515

350×350

11.9

1100

450

650

560

400×400

12.6

1200

500

700

605

450×450

13.3

1300

550

750

650

500×500

14.0

1400

600

800

690

600×600

15.4

1500

700

900

780
