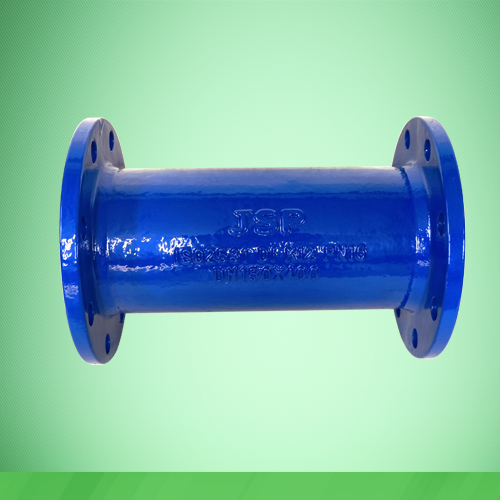

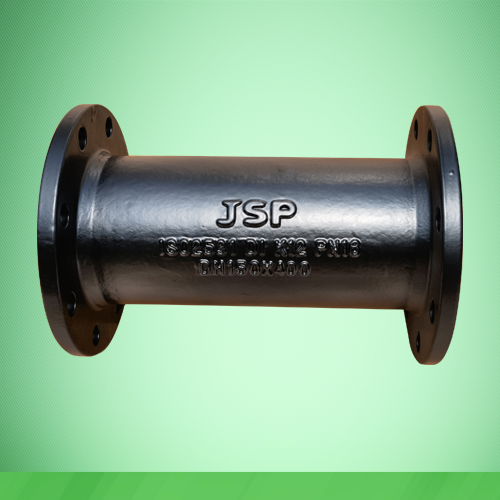

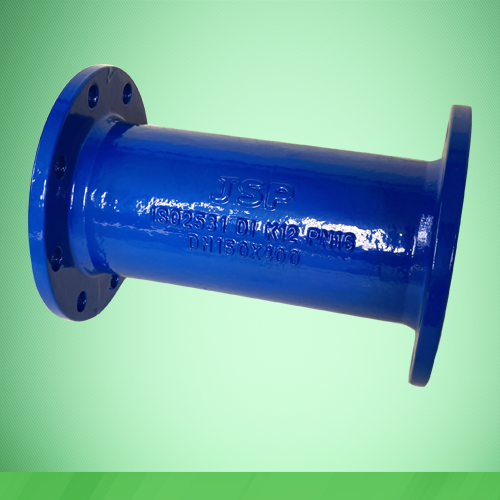

Double Flanged Pipe

Double Flanged Pipe

0.00
0.00


● Standards: ISO2531, EN545, EN598, AWWA C219, ASTM 2000, ASTM A536, ANSI/AWWA C111/A21.11

● Materials: Ductile iron

● Nominal sizes: DN80—2600mm

● Pressure: PN10/16/25/40

● Corrosion protection: Cement mortar lining and zinc and bitumen coating. Inside and outside FBE 300um. Other corrosion protections as customers’ requirement.

● Package: Wooden case with plastic film, wooden pallets with plastic film, steel crates.

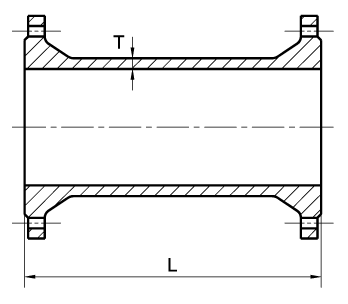

Dimensions:

Inch size end with Bs 10 Table E flange Metric size end with PN16 flange to BSEN545, Other flanges are available on request.

DN

L

Inch size

end

Metric size

end

3

80

150

3

80

200

3

80

250

4

100

250

5

150

250

6

150

250

7

200

250

8

200

250

9

250

250

10

250

250

12

300

250

14

350

250

15

400

250

16

400

250

18

450

250

20

500

250

21

500

350

24

600

300

27

700

500

30

700

500

30

800

500

33

800

500

36

900

500

42

1000

500

42

1100

500

48

1200

500
