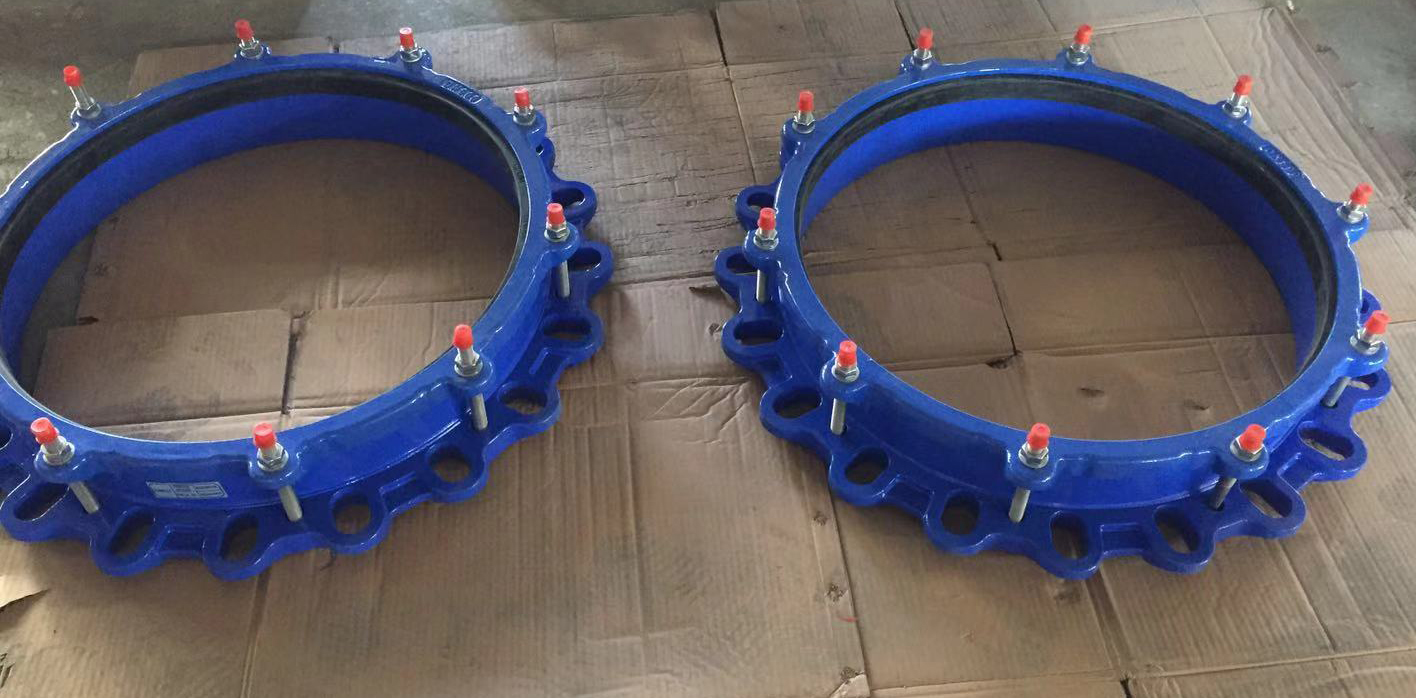

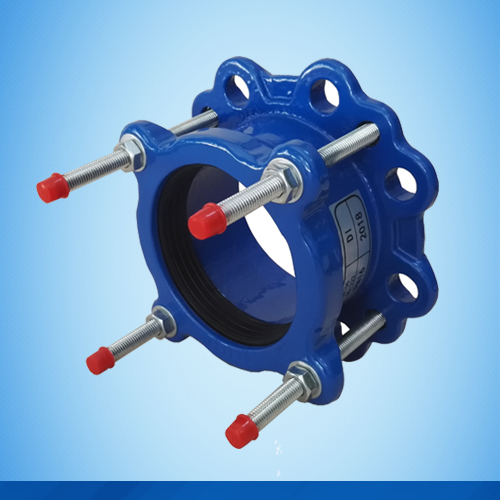

Flange adaptor, dedicated to D.I. pipe, Type II

Flange adaptor, dedicated to D.I. pipe, Type II

0.00
0.00


Flange adaptor for ductile iron pipe is suitable for pipeline which one end is flange and the other end is socket. We use new mechanical coupling technology to save the installation time. Install easily and remove conveniently.



There is 5-10mm telescopic adjustment between socket and flange plat. Another feature of the product is the range of connections. Because of the large diameter of the pipe connected to the product, the line is allowed to have a ±3°deviation when connecting the pipe line so that the normal movement of the pipe (such as ground subsidence, etc.). It can be used in the large bending radius pipeline caused the deviation.

In addition, the pipe can be cut with different lengths, and the product connection is changed from a socket pipe to a flange connecting pipe.

Install easily and quickly. Using only one wrench torque wrench to tighten high strength steel or stainless steel bolted connections is one of the most important features of this range products. In view of the above characteristics, the customer's demand for product inventory has been reduced.
