HOME >> Loosing Flange

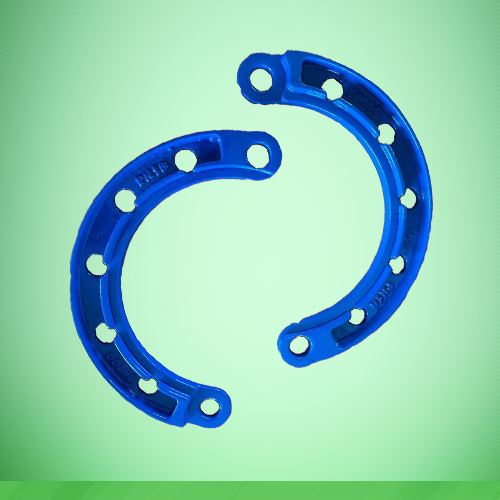

Loosing Flange

Loosing Flange

List price： 0.00

Price： 0.00

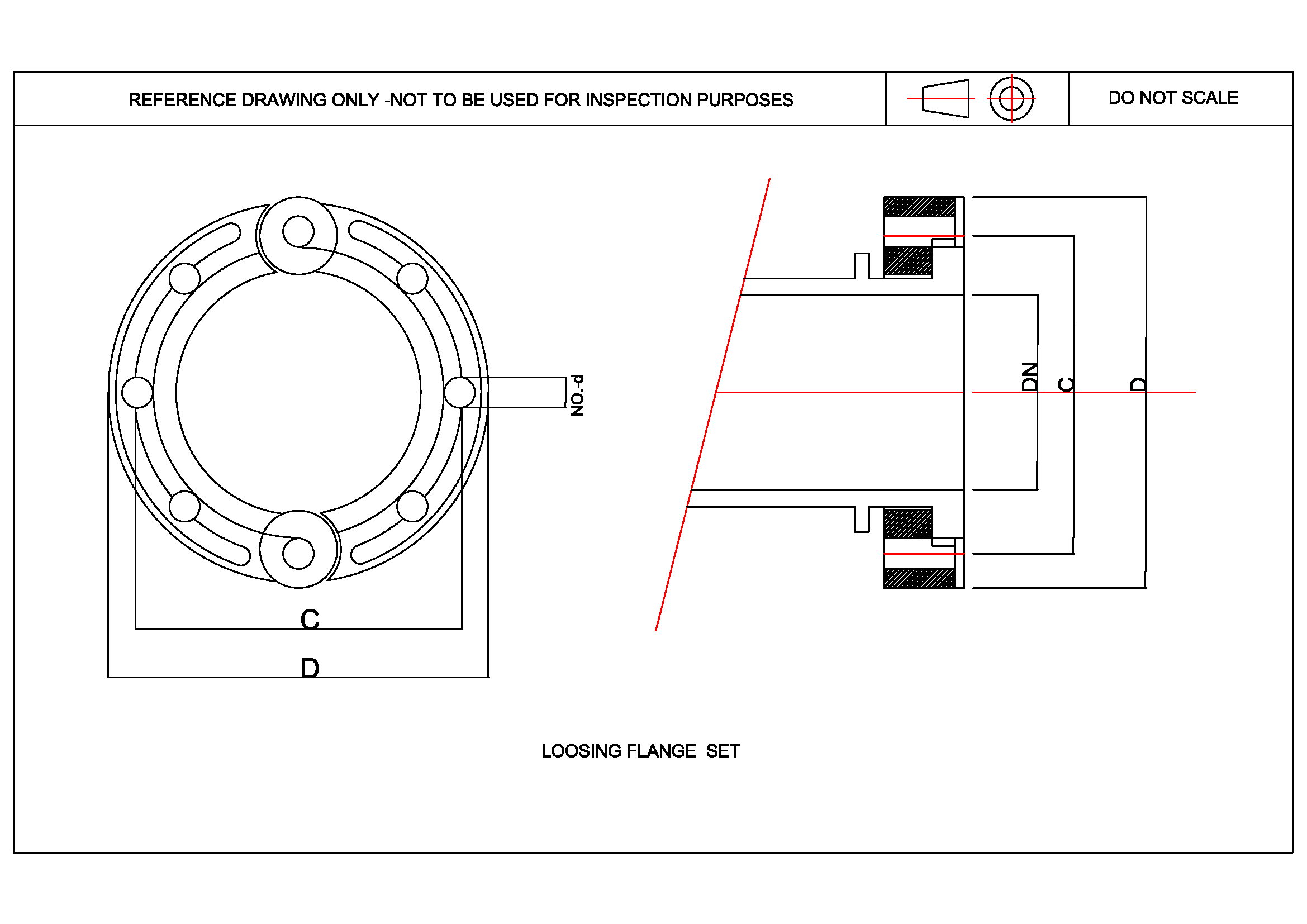

DN	PN10					PN16
	D	C	BOLT			D	C	BOLT
	D	C	d	size	N°	D	C	d	size	N°
40	150	110	19	M16	4	150	110	19	M16	4
50	165	125	19	M16	4	165	125	119	M16	4
60	175	135	19	M16	4	175	135	19	M16	4
65	185	145	19	M16	4	185	145	19	M16	4
80	200	160	19	M16	8	200	160	19	M16	8
100	220	180	19	M16	8	220	180	19	M16	8
125	250	210	19	M16	8	250	210	19	M16	8
150	285	240	23	M20	8	285	240	23	M20	8
200	340	295	23	M20	8	340	295	23	M20	12
250	395	350	23	M20	12	405	355	28	M24	12
300	445	400	23	M20	12	460	410	28	M24	12
350	505	460	23	M20	16	520	470	28	M24	16
400	565	515	28	M24	16	580	525	31	M27	16
450	615	565	28	M24	20	640	585	31	M27	20
500	670	620	28	M24	20	715	650	34	M30	20
600	780	725	31	M27	20	840	770	37	M33	20

Prev: All Loosing Flange Cross

Next: Flange adaptor, dedicated to D.I. pipe, Type II
